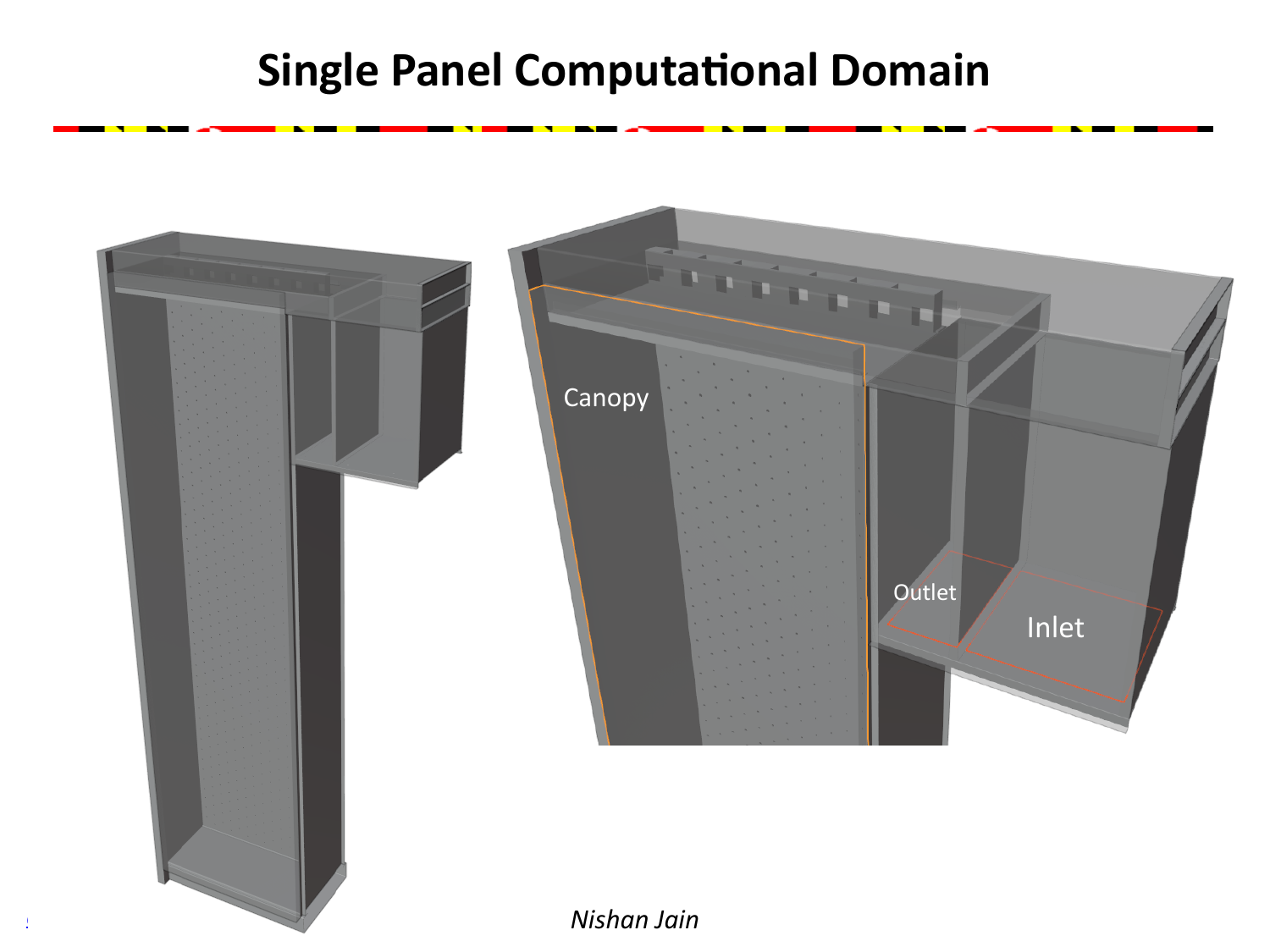

Flow Over Canopy

• Realizable k-epsilon model with standard wall functions
• Canopy roughness at 0.019 m
• Enforced CFM of 850 (0.4 m3/s) at the inlet
• Pressure allowed to adjust on its own
• High pressure high velocity flow – CFL restricted to 10
